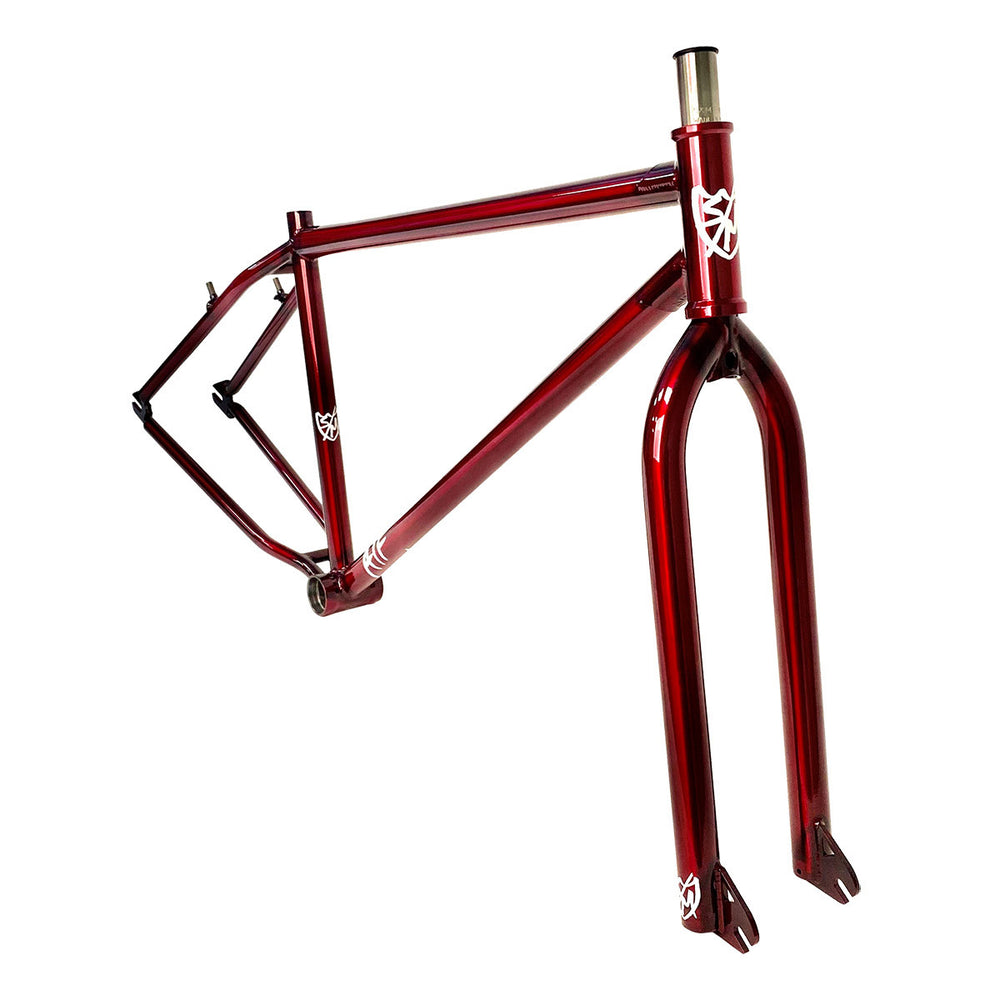

29" S&M Bikes ATF Frame & fork

Sold out
$899.95
Make a choice

***FRAME & FORK ONLY

*SHIPS NEXT BUSINESS DAY

*SHIPS TO CALIFORNIA IN 1-2 DAYS

*SHIPS ANYWHERE IN THE USA IN 2-5 DAYS

*1 YEAR WARRANTY

*SUPER SECURE CHECK OUT

*365 DAY RETURN POLICY

*INCLUDES FREE STICKERS

***All the parts on our website fit this frame

Stacked official word:
***FRAME  & FORK ONLY - TBA

S&M BIKES word:
TBA

29″ ATF Frame:
23.75” TT
17.75” RE
15.25” SO
12.25” BB
69° HT
69° ST
5.15” Tall Integrated HT
Mid BB
V Brakes w/ 3 Cable Guides
3/8” Dropout Slots
NO Integrated Seat Clamp

29” ATF Fork:
435mm Axle-Crown
172mm Integrated PFXLT Steerer Tube
Straight Gauge 1.25” Fork Legs
3/8” PF Dropouts

Frame Specifications:

Top tube: 23.5"

Head Tube: 69°

Rear end: 17.75"

Stand over: 15.25"

Seat tube: 69°

Tire clearance: 2.5"

seat clamp: Not included

Gusset: external top tube & down tube, external down tube

headset: Intergrated 1 1/8"

Gyro compatible: No

Bottom Bracket: Mid

Brake mounts: V-brakes

Axle slot: 3/8"

dropouts: 5mm thick Steel invest

chain tensioners: negative

Material: 4130 chromoly

Heat treated: Yes

Weight: TBA

*price may vary in our store front, for lowest price order online.

Shipping: Rate is based off of weight of order & your location. Ships next business day, not including the day your order is placed. Excludes weekends and holidays.

We accept all major credit cards & Paypal.

***Every Online order comes with a bunch of stickers and FREE stuff from your favorite brands. The more you order the more we throw in. Stacked Always giving back.
