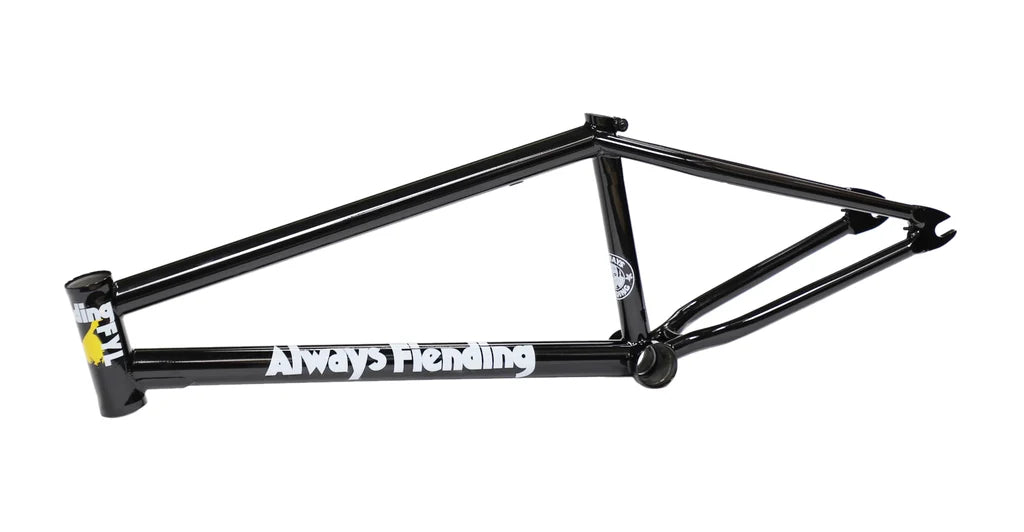

Fiend Garrett Reynolds signature V3 frame Flat black

by Fiend
Make a choice

^^watch video for more info^^








***All the parts on our website fit this frame

Stacked official word:
"The Garrett Reynolds signature frame is a super light heavy duty frame made for the streets or park. The head tube is internally and externally machined for a intergrated headset and has a 75.5 degree head tube for easier nose manuals or tooth pick grinds. The top tube and down tube have internal gussets for extra strength and the down tube has a external gusset to prevent the down tube from breaking. This frame is available in 20.5", 20.75" or 21" to fit any height rider. The seat tube has a 71 degree angle for extra room for barspins and a intergrated seat clamp to mkae your entire bike lighter. The bottom bracket has a 11.625 height make it easier for manuals or wheelies and has an hour glass shape to help lock in crooked grinds. The bottom bracket is also internally and externally machined for weight reduction. The chain stays and seat stays are tapered for strength and are capped off for a clean look. both are extra wide to fit the larger 2.5" tires and have curve bridges to keep the rear end stiff. The dropouts are set to 12.75" for great manuals and feature a 6mm thick dropout with a intergrated chain tensioner to help keep your back wheel straight. The entire frame is 100% tig-welded chromoly and is post weld heat treated to give you even more strength. The graphics look super sick with all kinds of things Garrett loves and were sketch up by Eben Fischer. If you are looking for a killer looking frame that will hold up to street riding, buy this frame now."

Fiend word:
Designed by Garrett Reynolds. Constructed from heat-treated 4130 chromoly with an internal gusset in the toptube and an external gusset on the downtube. The frame’s tubing is double butted with a heat-treated Mid BB shell and headtube, externally butted seat tube with integrated post clamp and integrated chain tensioners. Available with or without removable seat stay brake mounts and cable guide.


Head Tube: 75.5°

Rear end: 13"

Stand over: 9"

Seat tube: 71°

Tire clearance: 2.5"

seat clamp: intergrated

Gusset: internal top tube & down tube, external down tube

headset: Intergrated 1 1/8"

Gyro compatible: no

Bottom Bracket: Mid

Brake mounts: no

Axle slot: 14mm

dropouts: 6mm thick invest cast

chain tensioners: Intergrated

Material: 4130 chromoly

Heat treated: Yes

Weight: 72oz. / 2041g / 4.5lbs

*price may vary in our store front, for lowest price order online.

Shipping: Rate is based off of weight of order & your location. Ships next business day, not including the day your order is placed. Excludes weekends and holidays.

We accept all major credit cards & Paypal.

***Every Online order comes with a bunch of stickers and FREE stuff from your favorite brands. The more you order the more we throw in. Stacked Always giving back.
